Mott Avenue Aerial Perspective – Northeast Corner

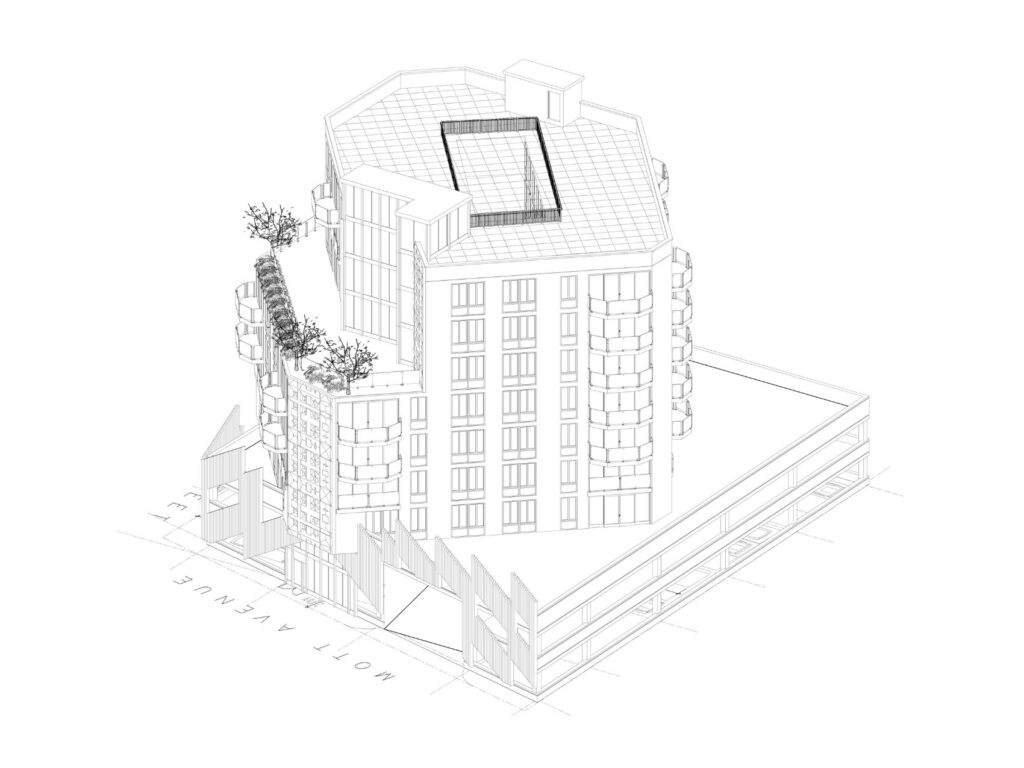

Aerial technical perspective highlighting the building massing, parking structure, and landscaped terrace level.
Client
Location
Year
Scope
Investor-focused feasibility study for a residential apartment building with advanced building technologies.
Overview
The Mott Avenue Residential Mid-Rise was developed as a preliminary design and feasibility study for a multifamily residential apartment building, intended to demonstrate the project’s market viability and attract interest from investors, developers, and financial institutions. The study explored site development opportunities, building programming, and design strategies, presenting a compelling vision for a modern residential community in a growing urban environment.
The proposed development incorporated advanced building technologies and forward-thinking design concepts to improve sustainability, efficiency, and long-term asset value. Through detailed planning and feasibility analysis, the project provided stakeholders with a clear roadmap for potential development while highlighting opportunities for future growth and investment. The project is currently being marketed to a new investor group for acquisition and advancement toward construction.
Technical Drawings

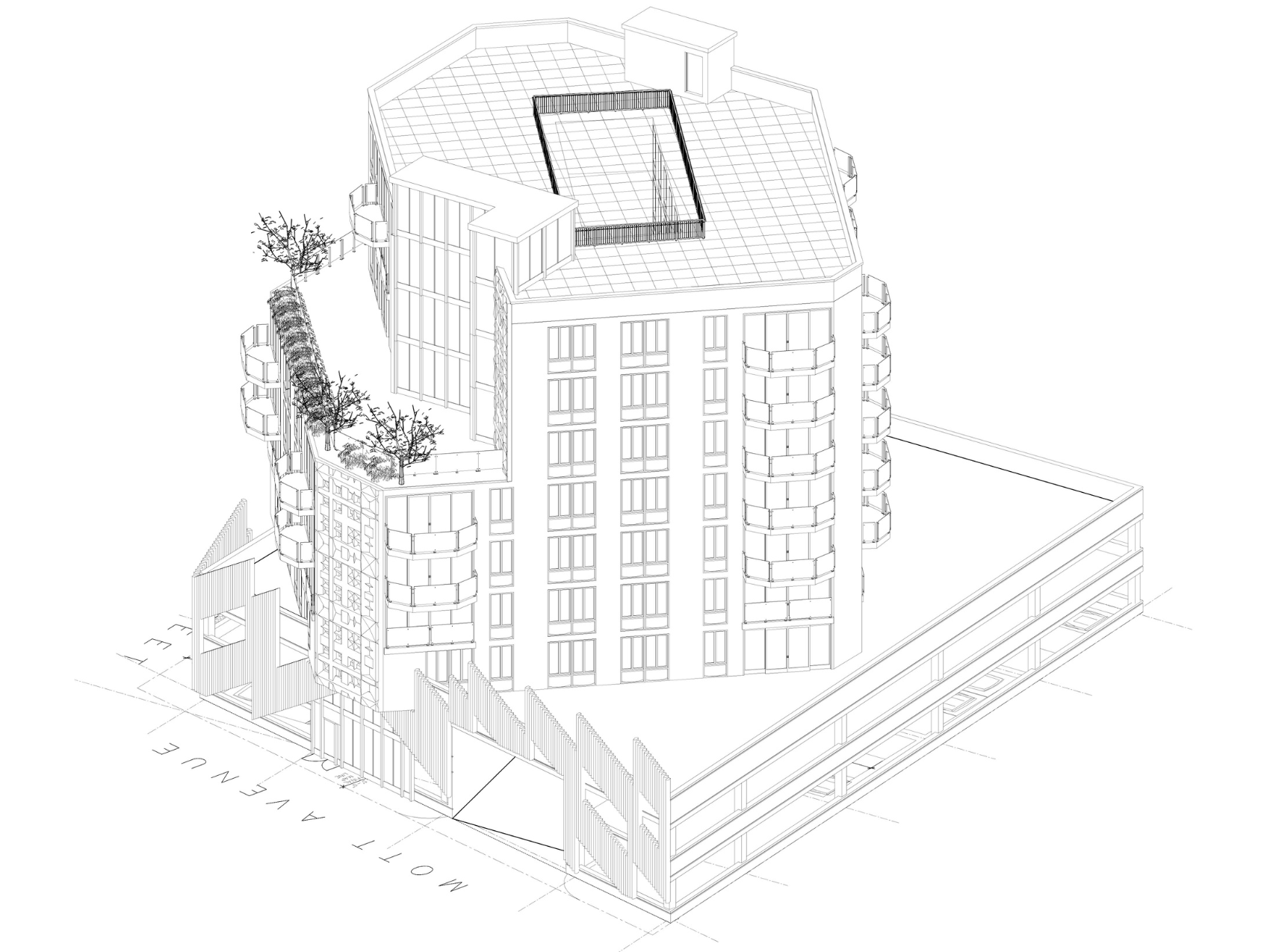

Aerial technical perspective highlighting the building massing, parking structure, and landscaped terrace level.

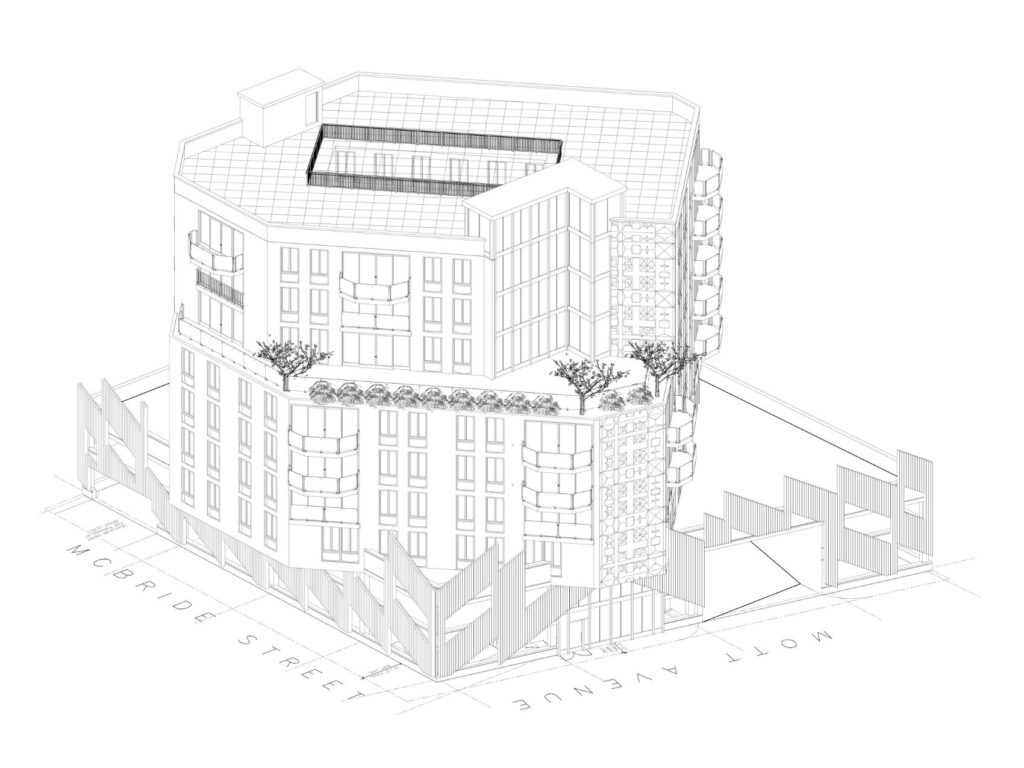

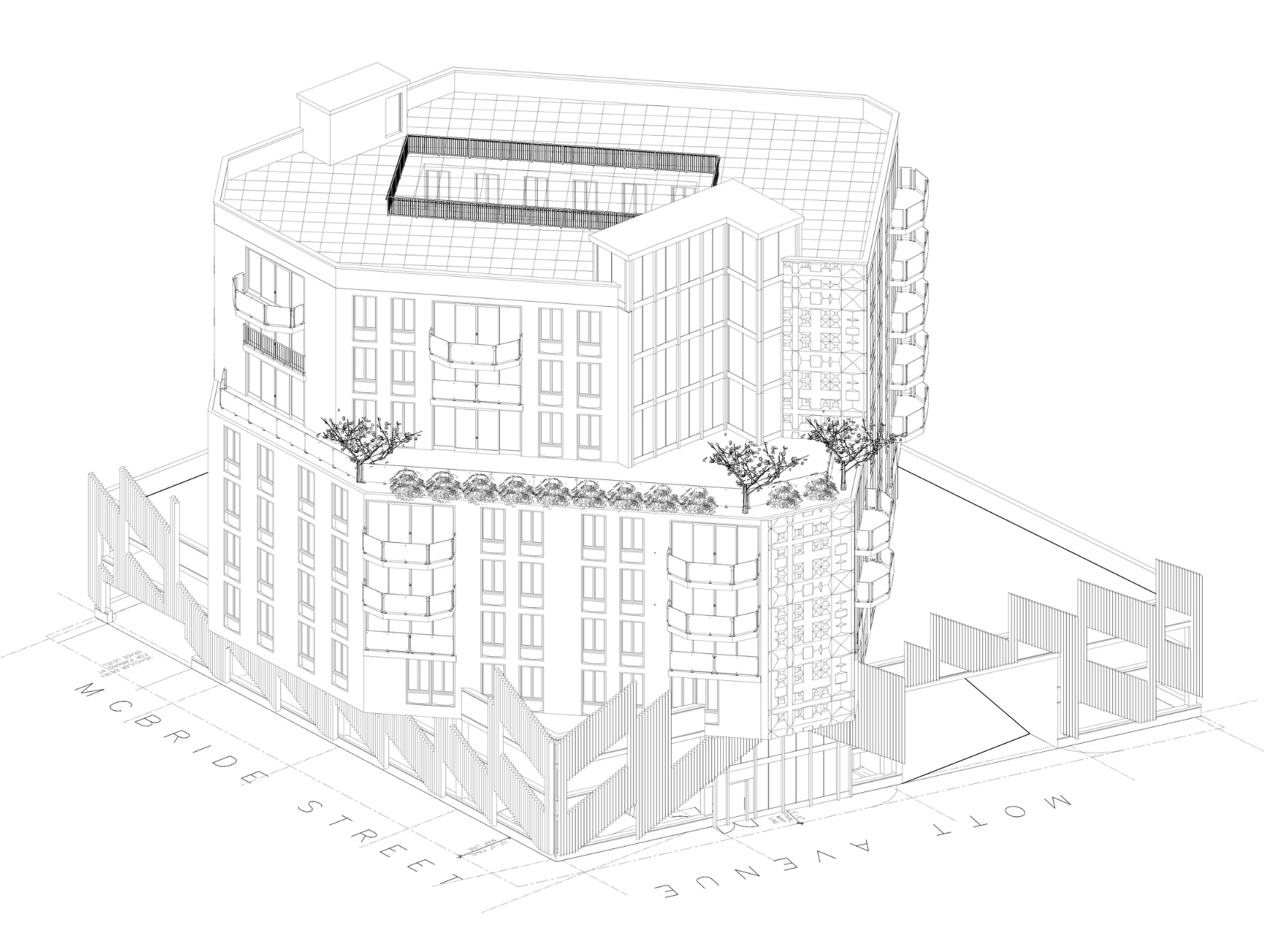

Aerial perspective technical drawing illustrating the Mott Avenue mixed-use residential development and integrated parking structure.

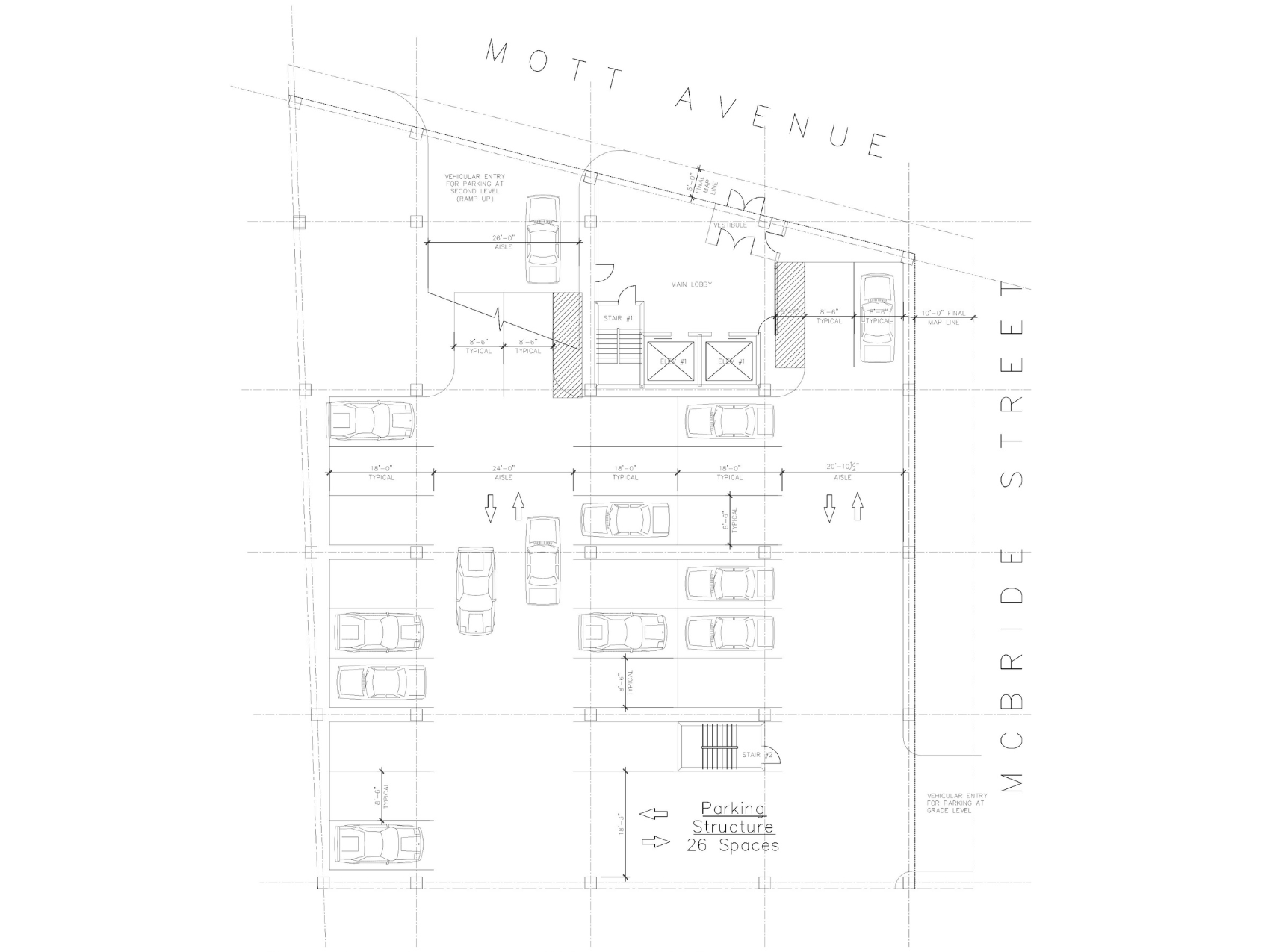

Ground-level parking and circulation plan for the Mott Avenue mixed-use development.

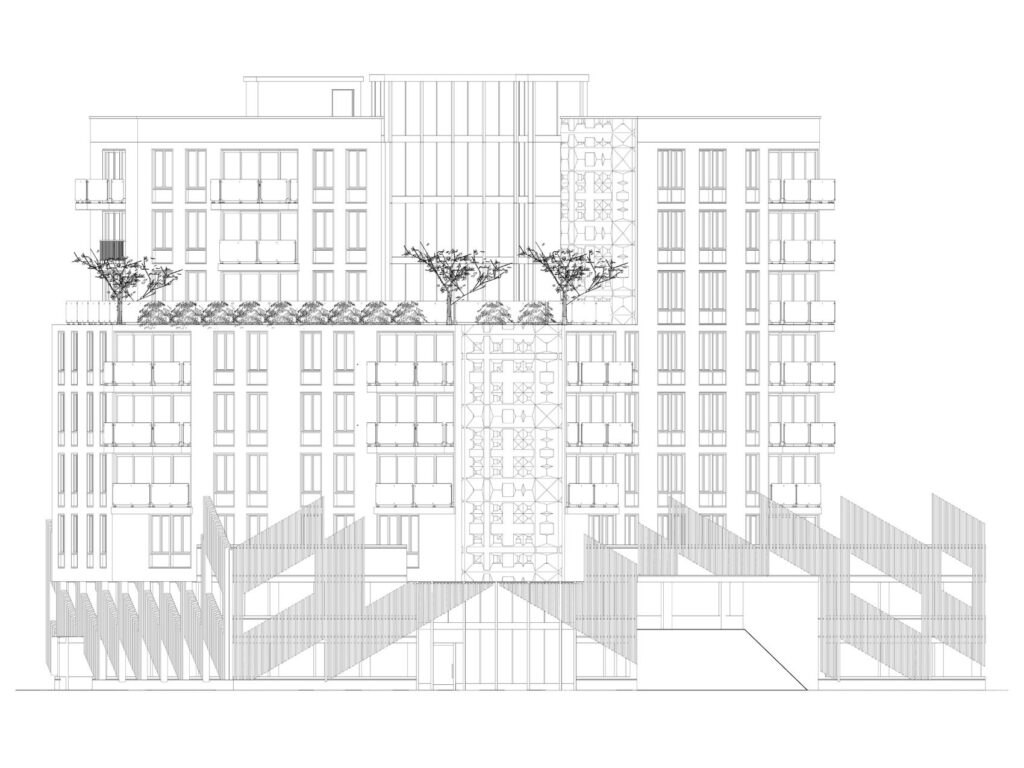

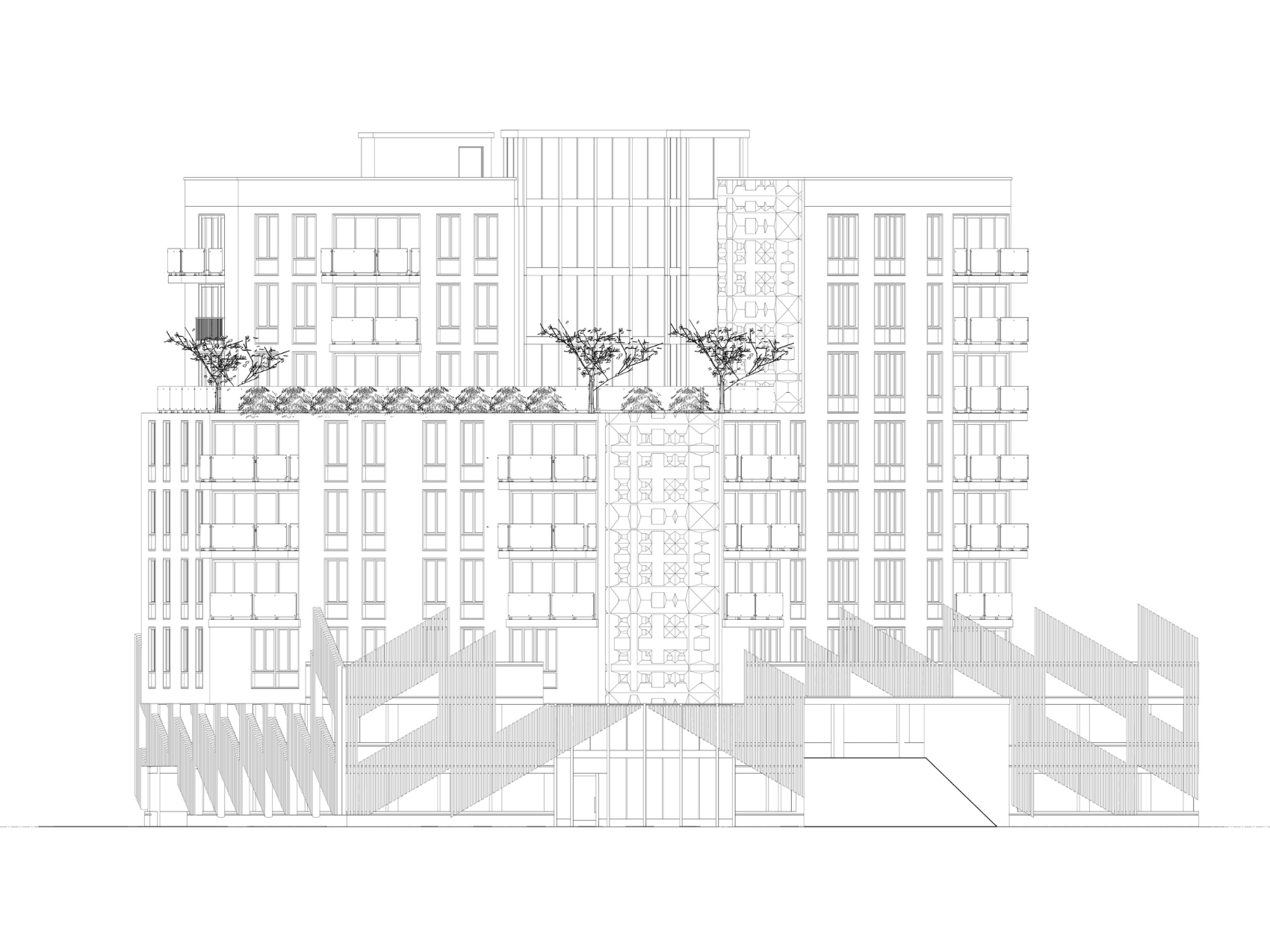

Front building elevation illustrating the architectural character and massing of the Mott Avenue development.

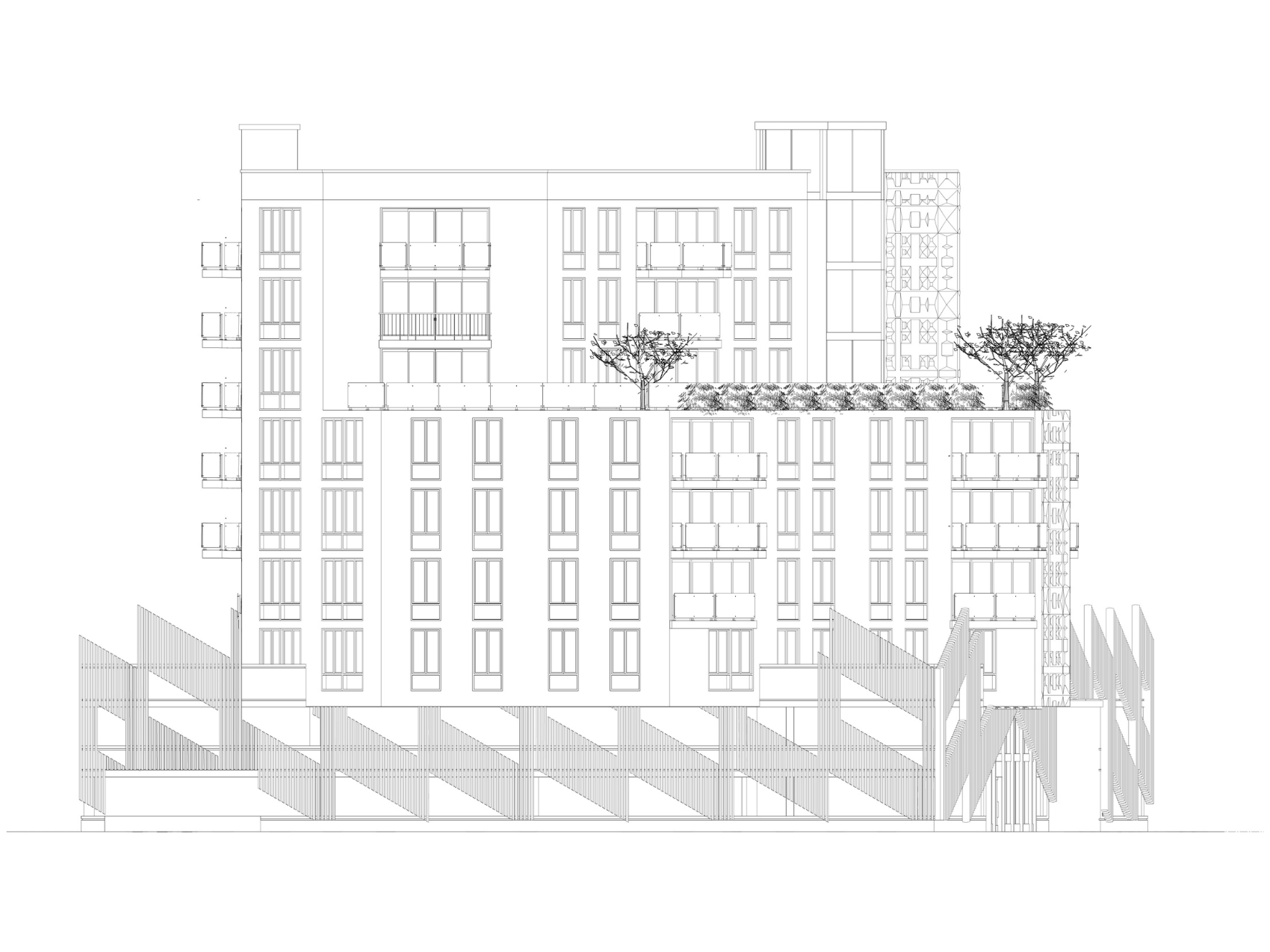

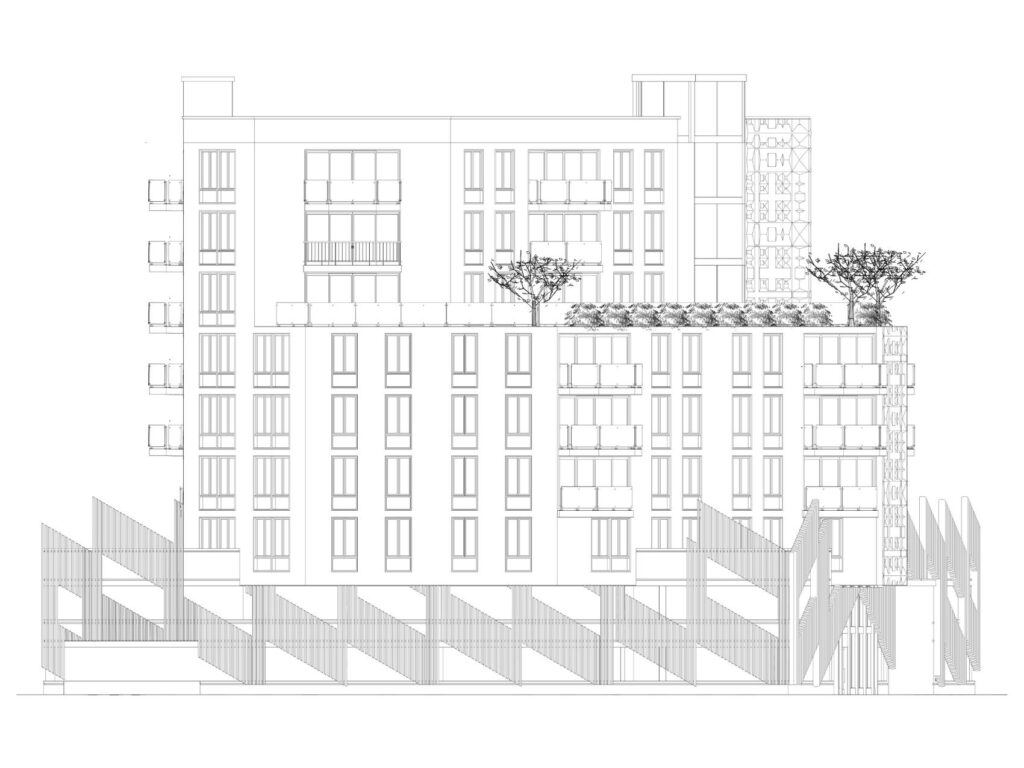

Rear building elevation illustrating residential floors, terrace landscaping, and parking structure enclosure.

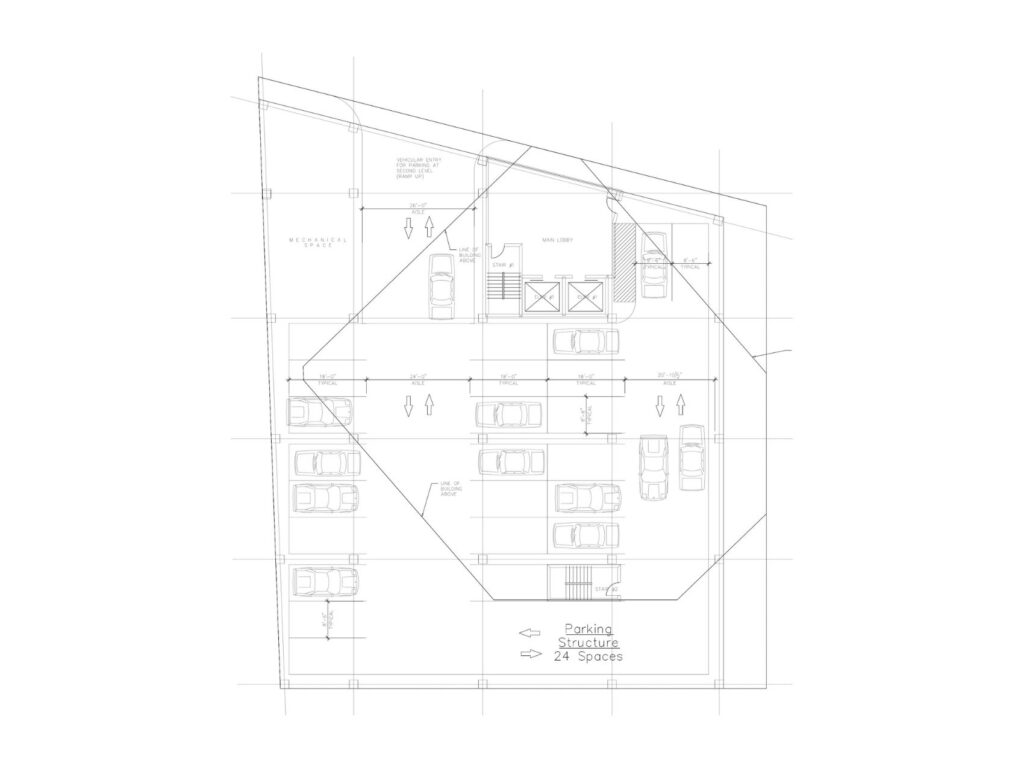

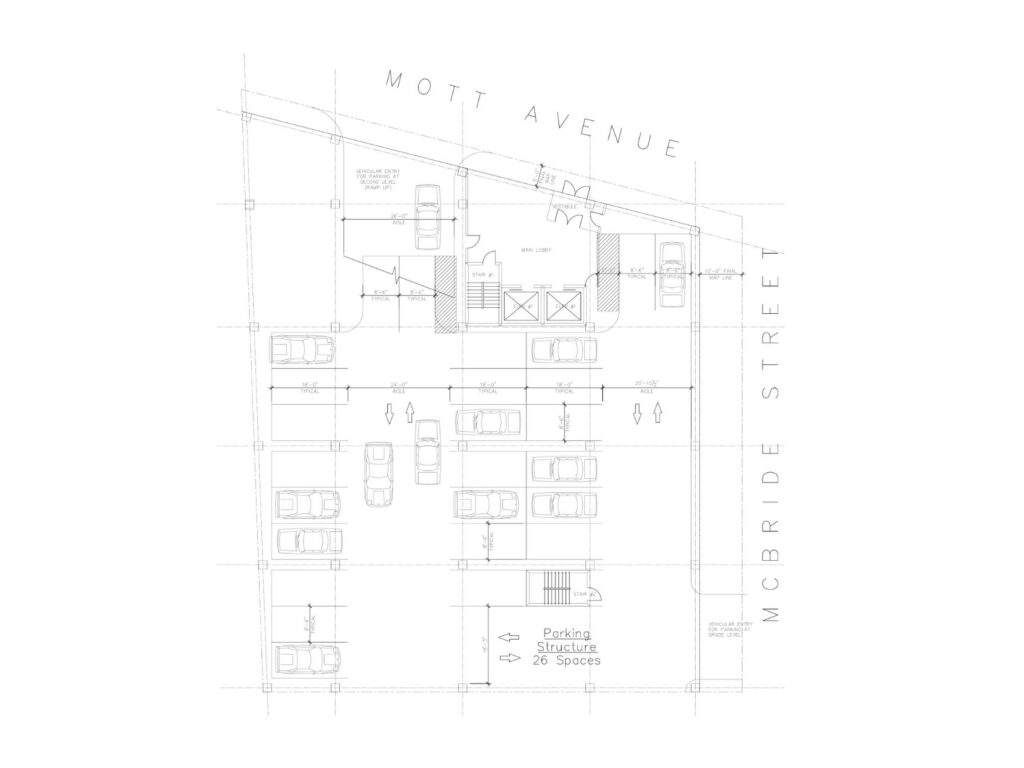

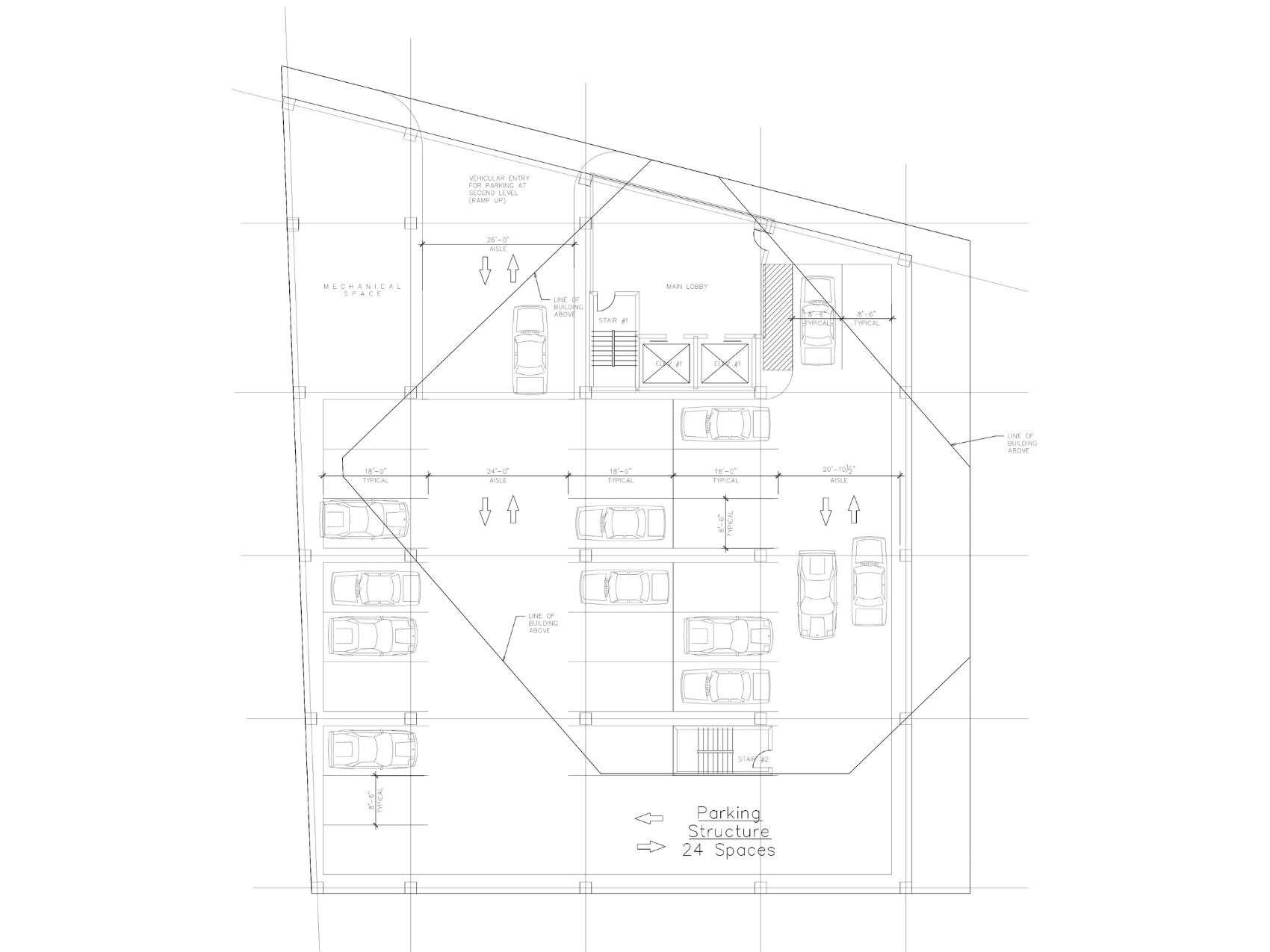

Parking level plan illustrating vehicle circulation, parking layout, and vertical circulation elements.

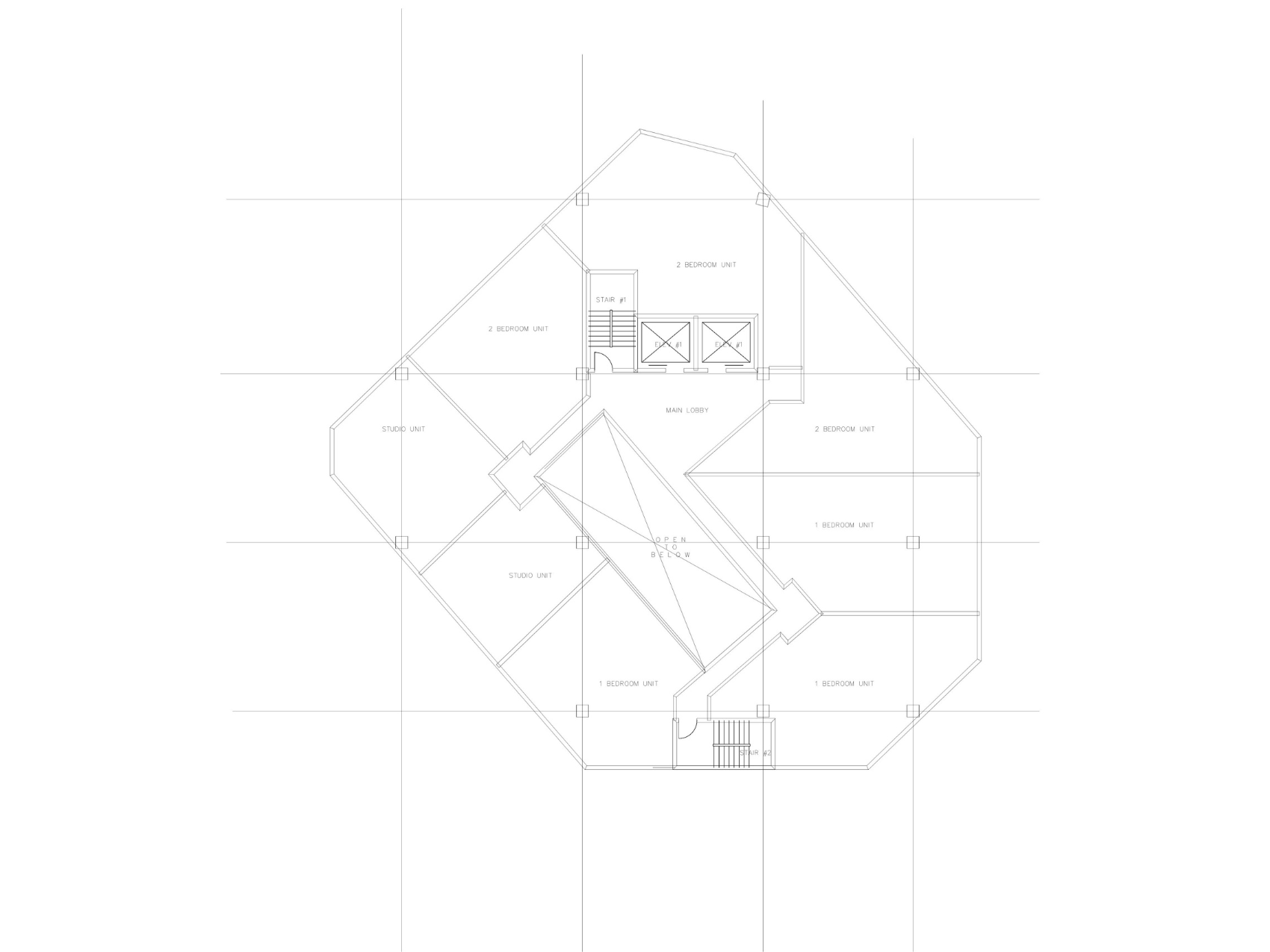

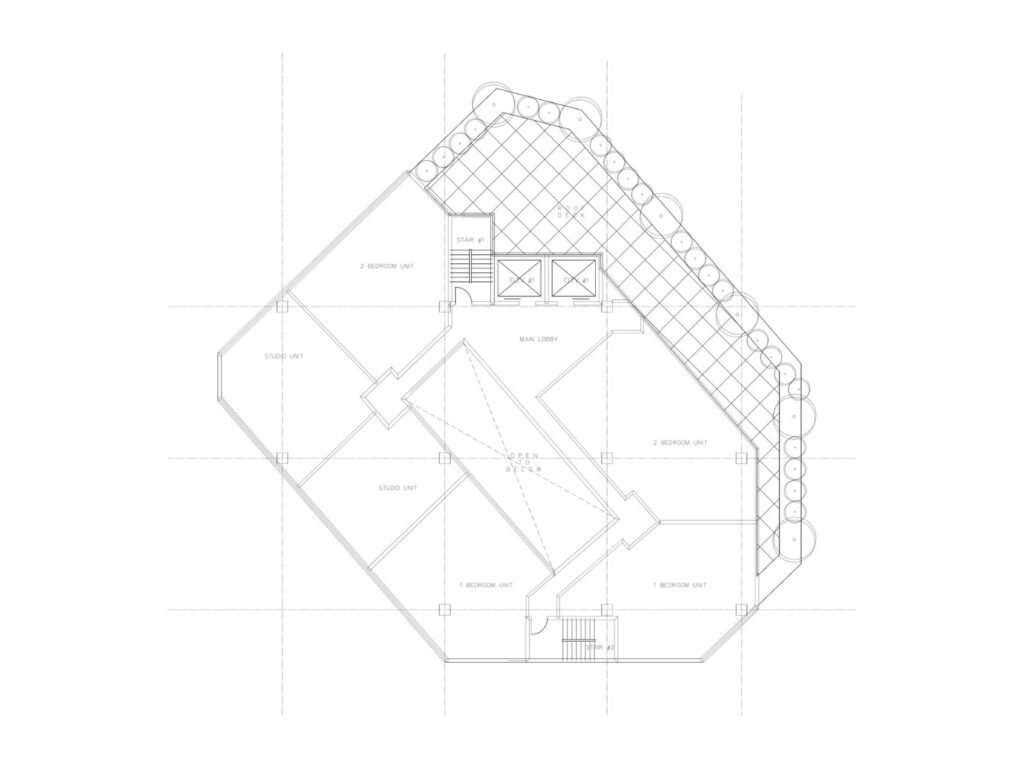

Upper-level residential floor plan featuring apartment units surrounding a central atrium and rooftop terrace.

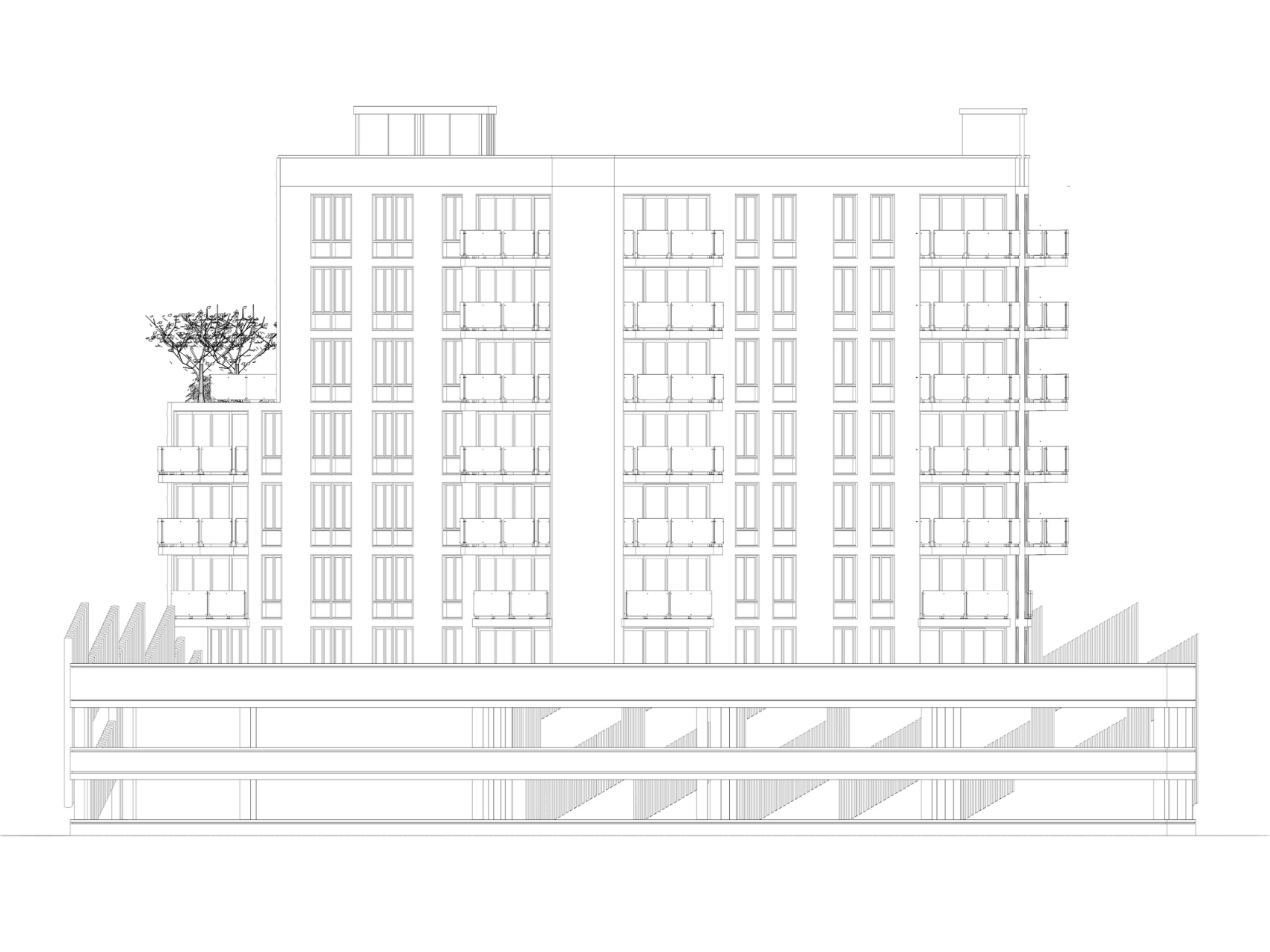

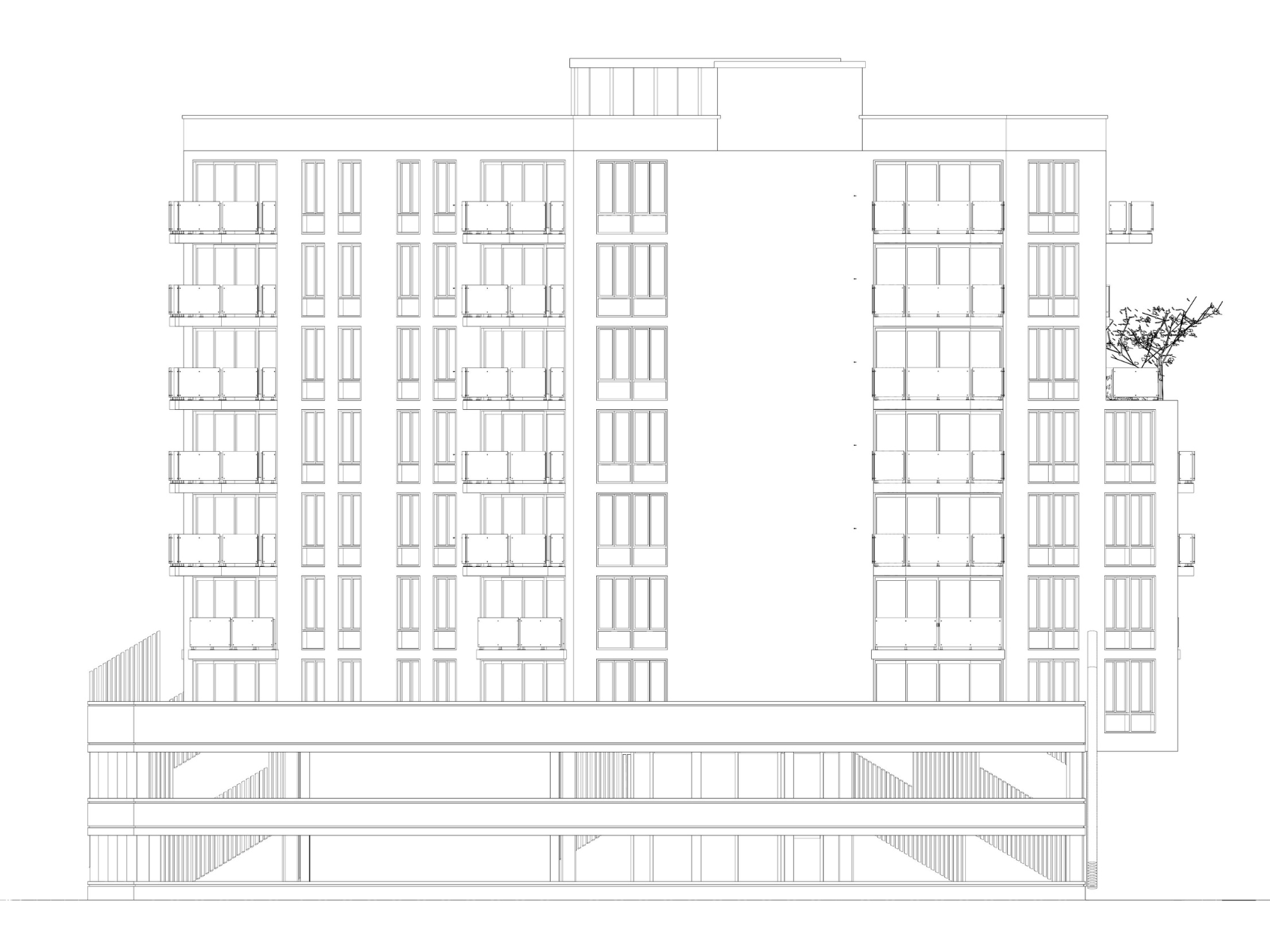

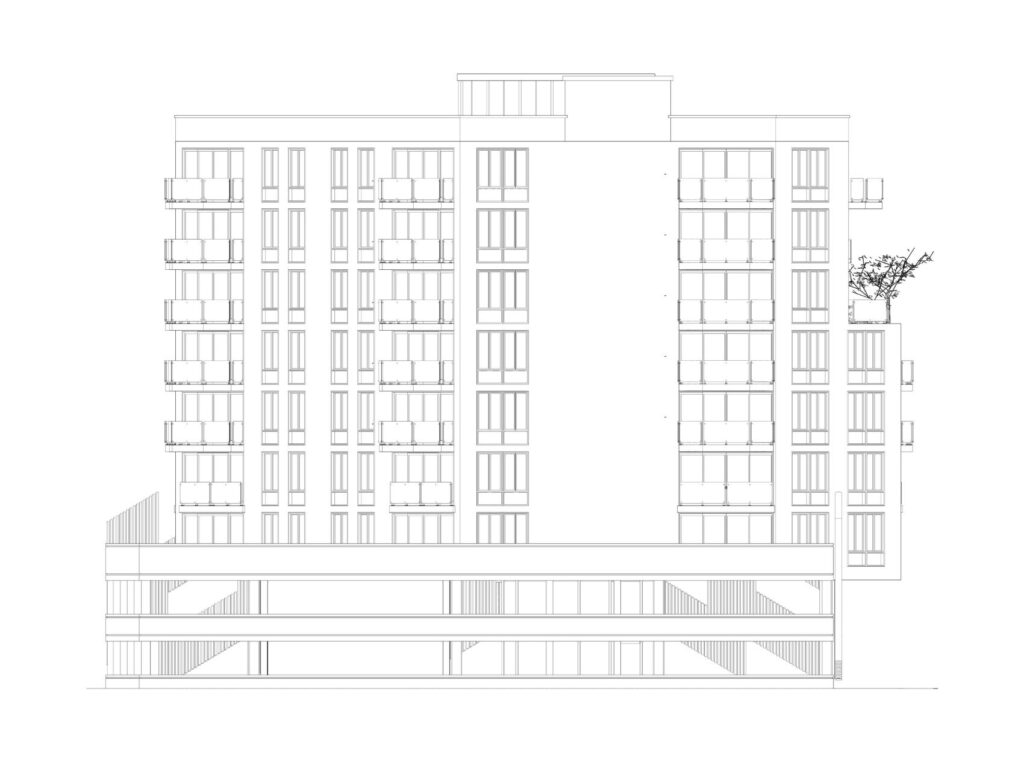

Side building elevation illustrating residential units above a structured parking facility.

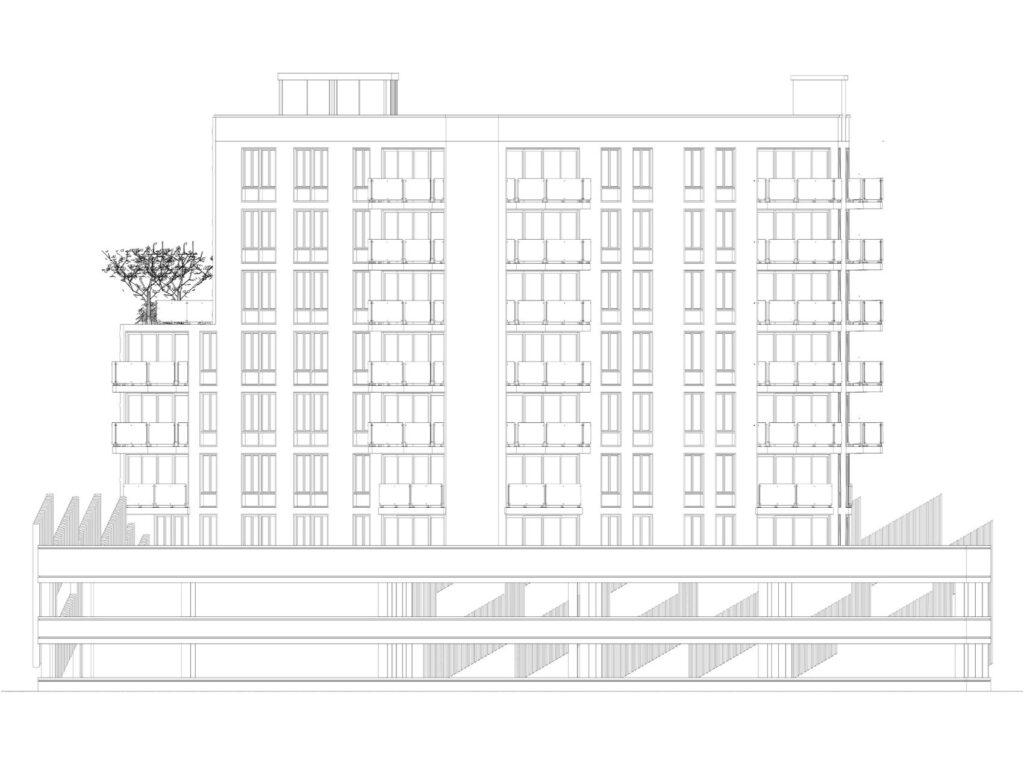

Alternate side elevation highlighting the building's residential façade and parking structure integration.

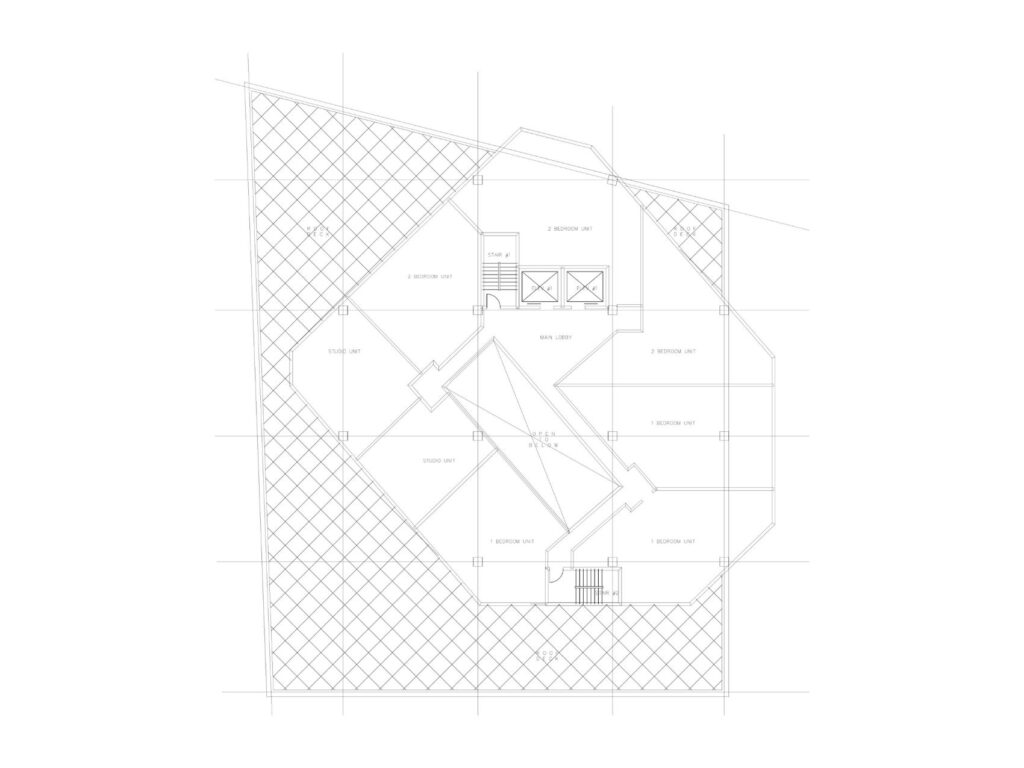

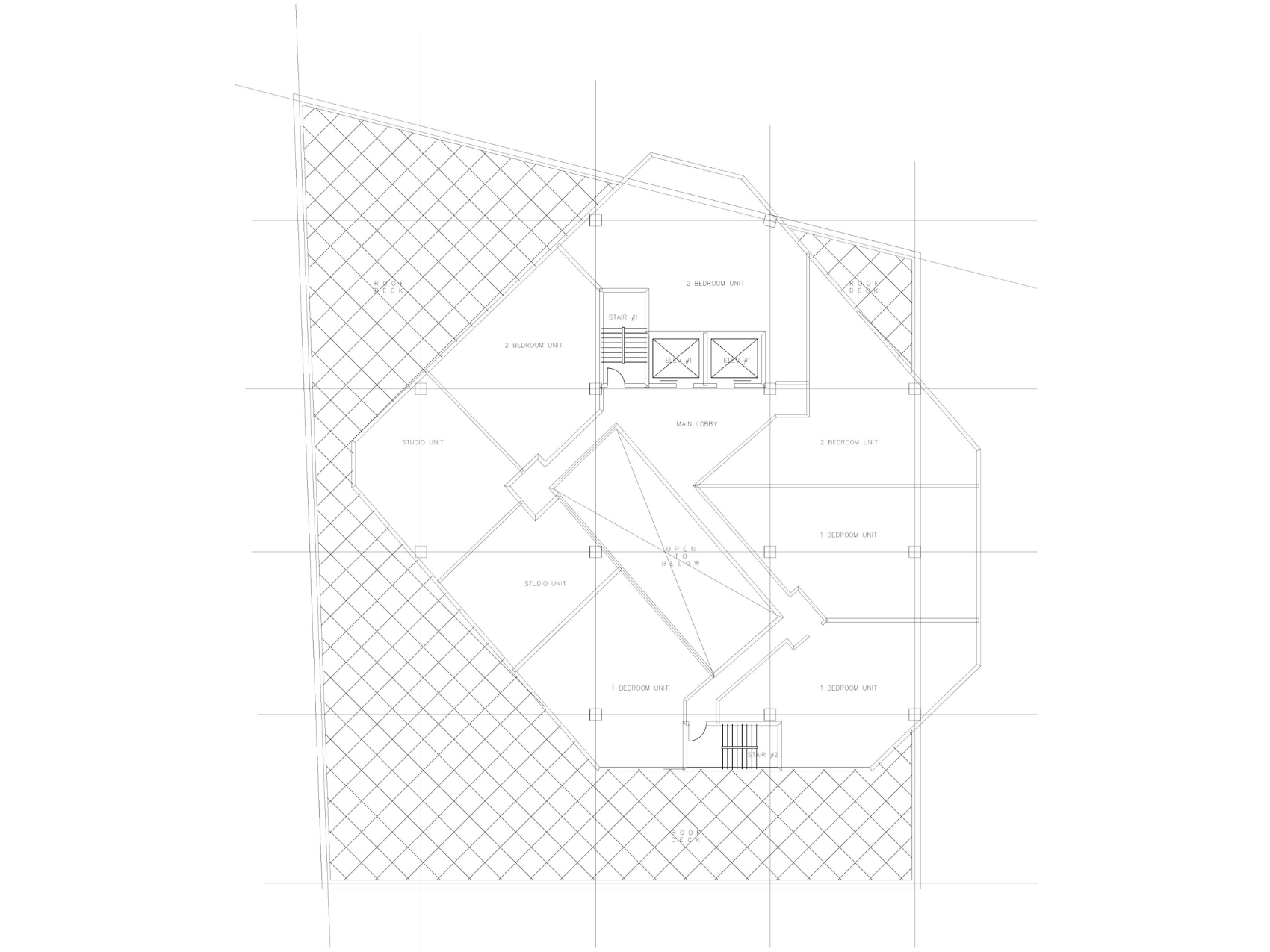

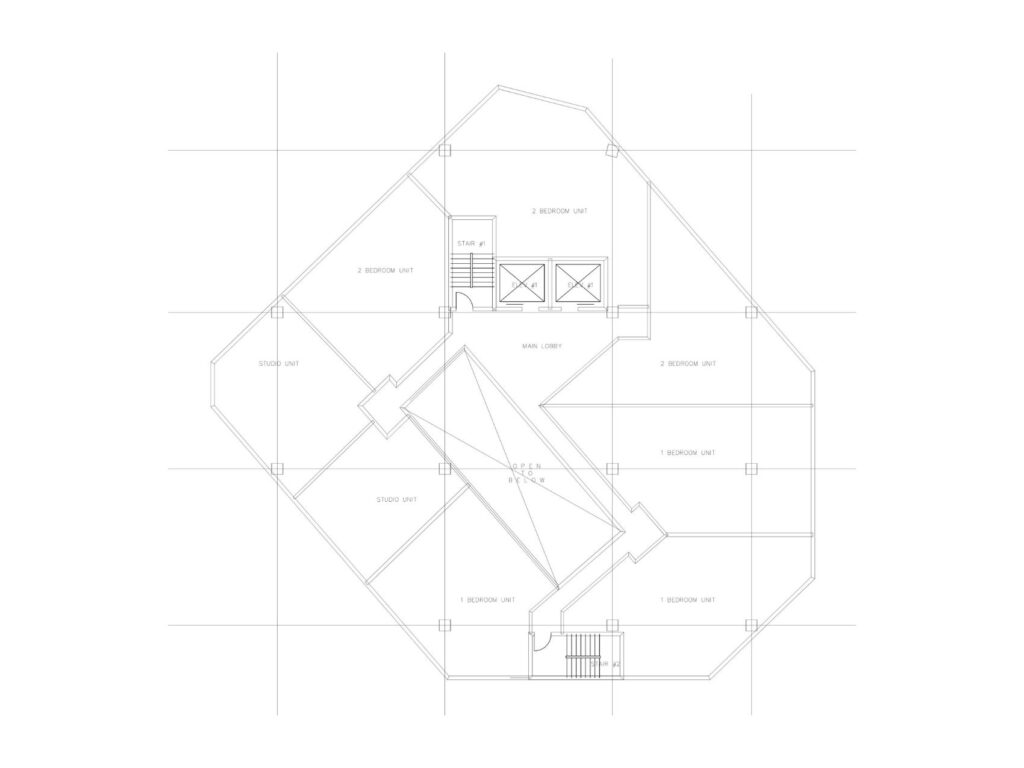

Third floor plan illustrating residential unit distribution and rooftop amenity deck areas.

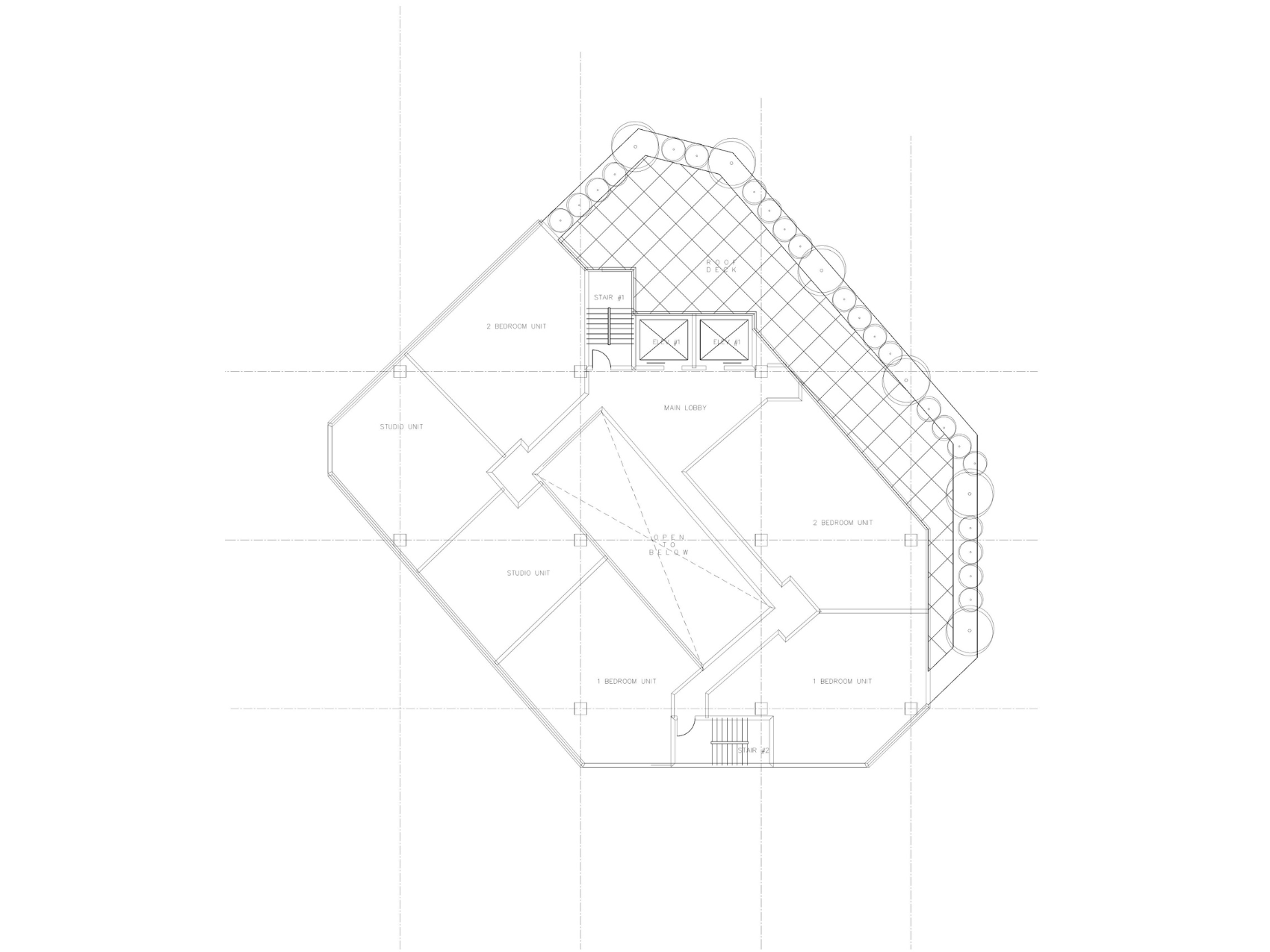

Residential floor plan showing unit distribution around a central atrium and circulation core.
