636 Putnam Avenue

Brooklyn, NY •

Residential •

In Development

From line drawing to finished form — thirty seconds.

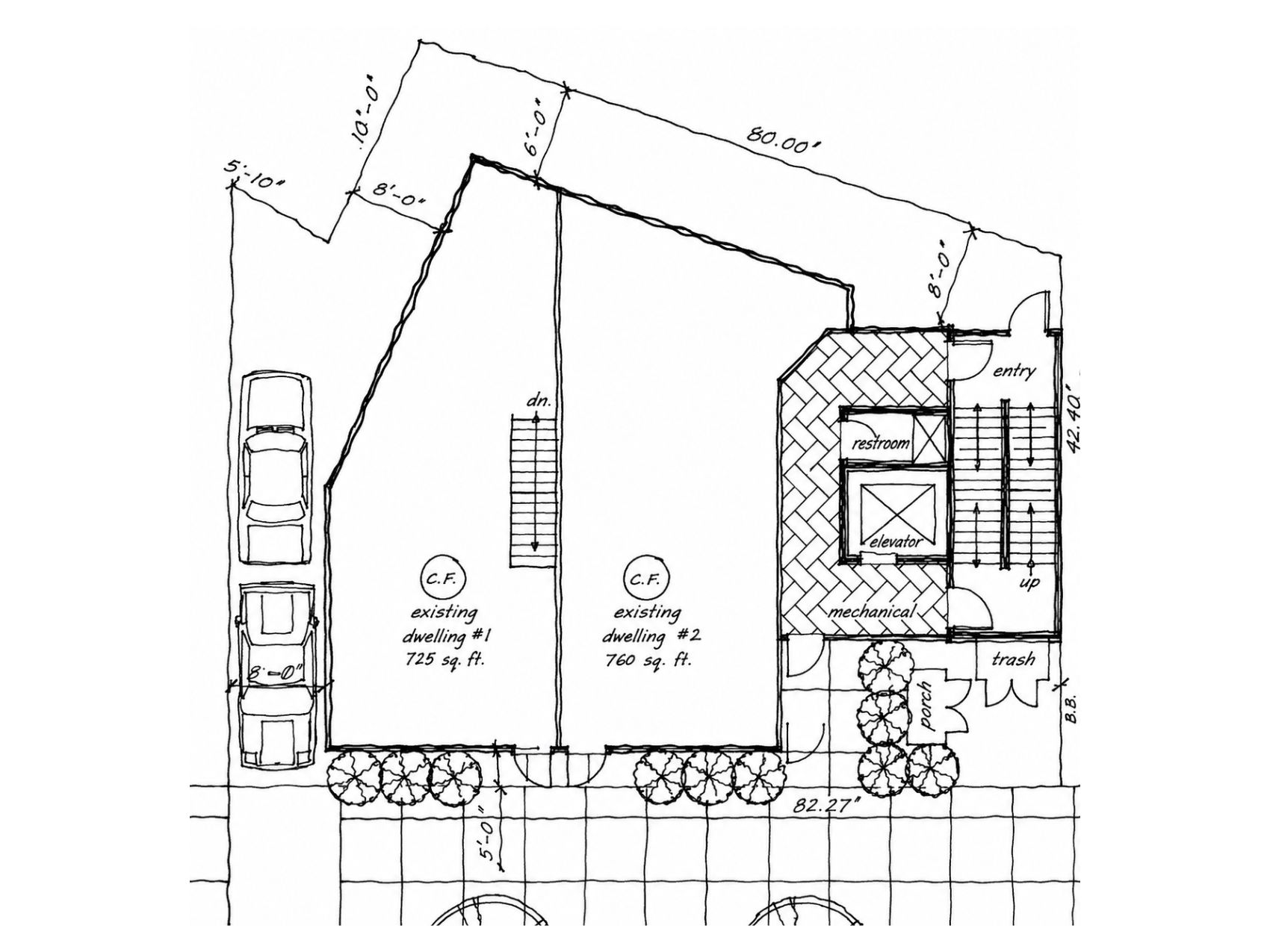

First-floor plan study for the Putnam Avenue residential project showing two existing dwellings, entry, elevator, stairs, mechanical area, porch, and site layout.

First Floor Plan

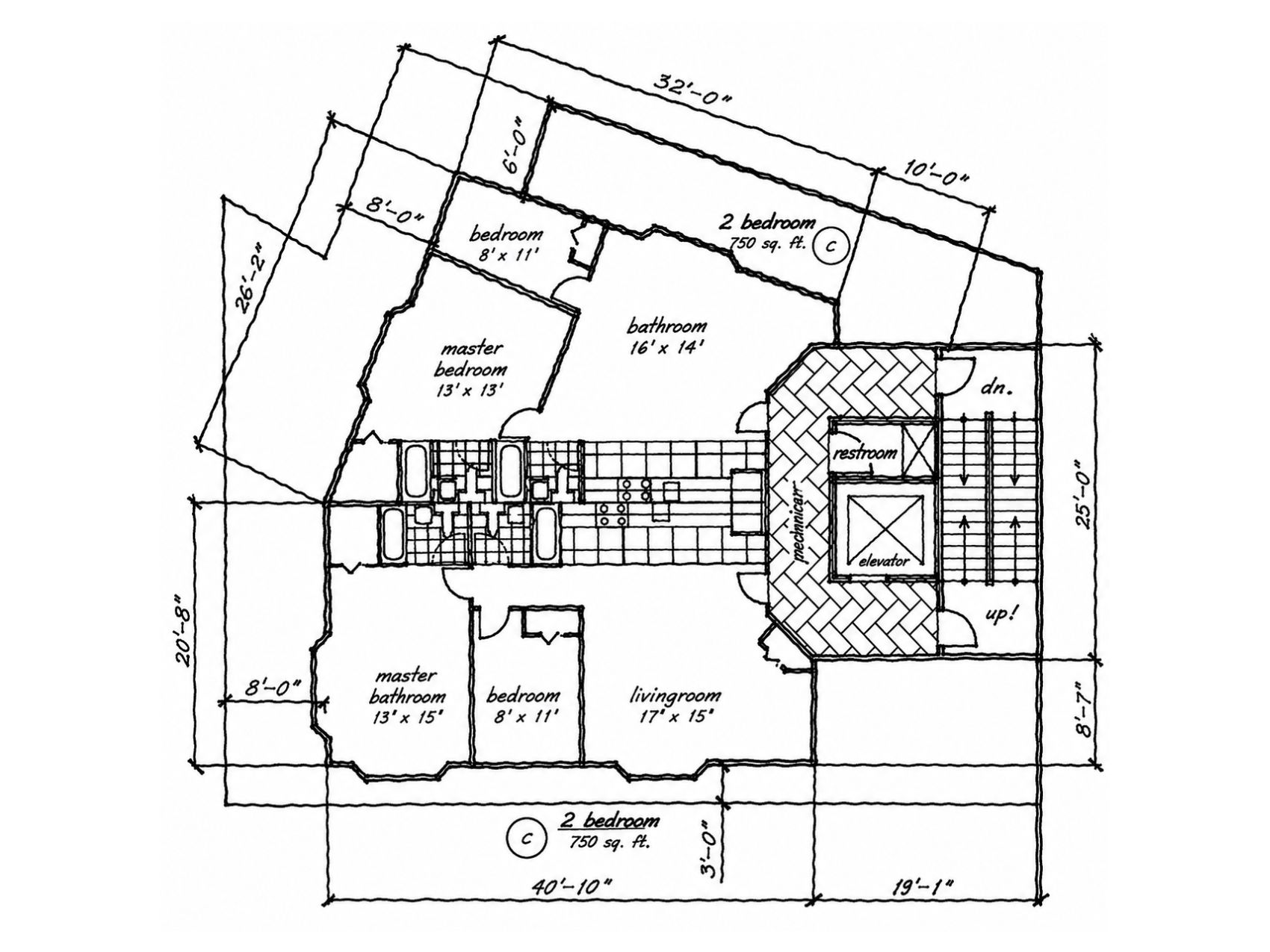

Second-floor plan study for the Putnam Avenue residential project showing two-bedroom unit layouts, bedrooms, living spaces, bathrooms, elevator, stairs, and mechanical core.

Second Floor Plan

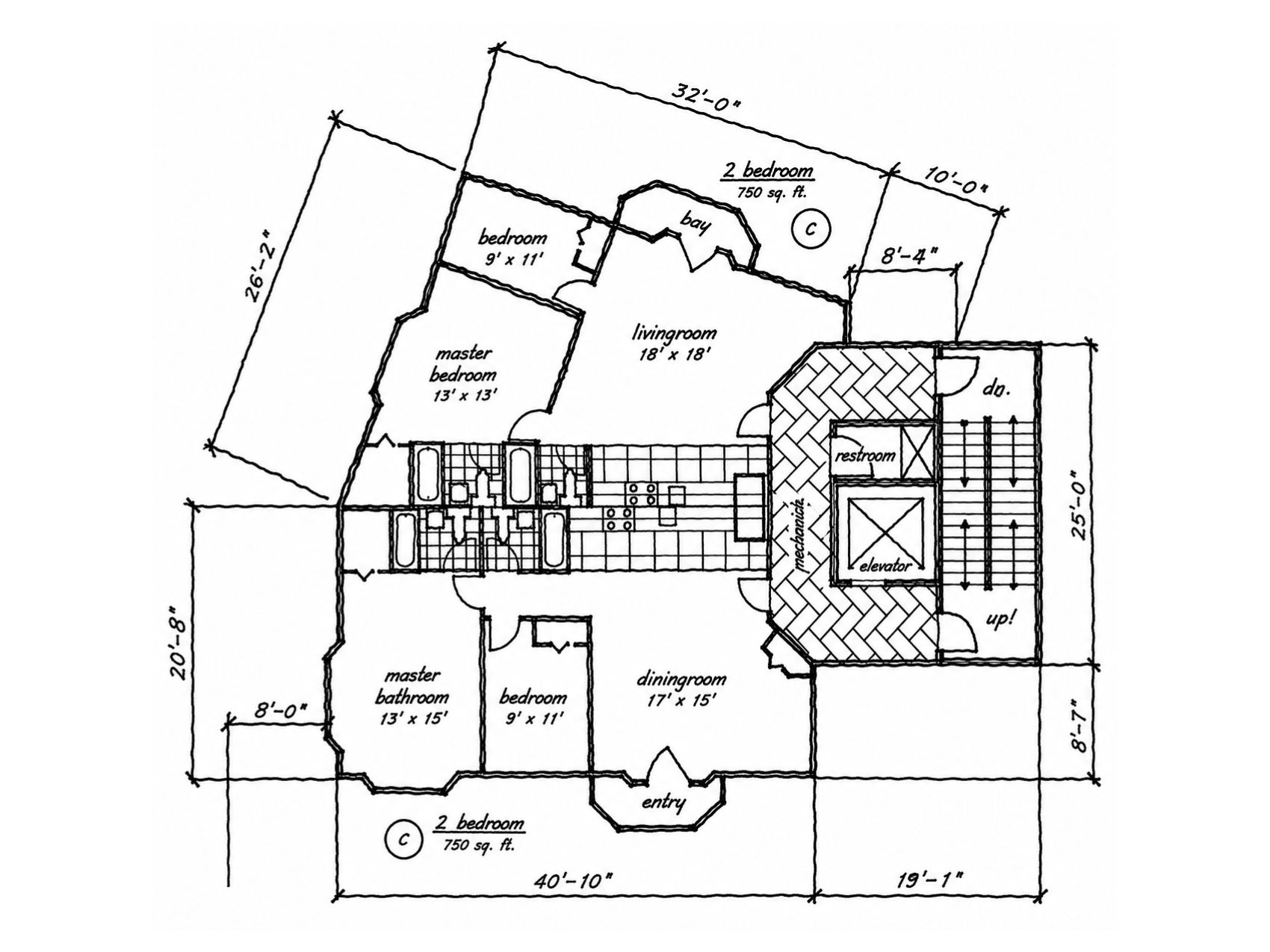

Typical third-through-sixth-floor plan for the Putnam Avenue residential project showing two-bedroom units, living and dining spaces, bathrooms, elevator, stairs, and mechanical core.

Third Through Sixth Floor Plan

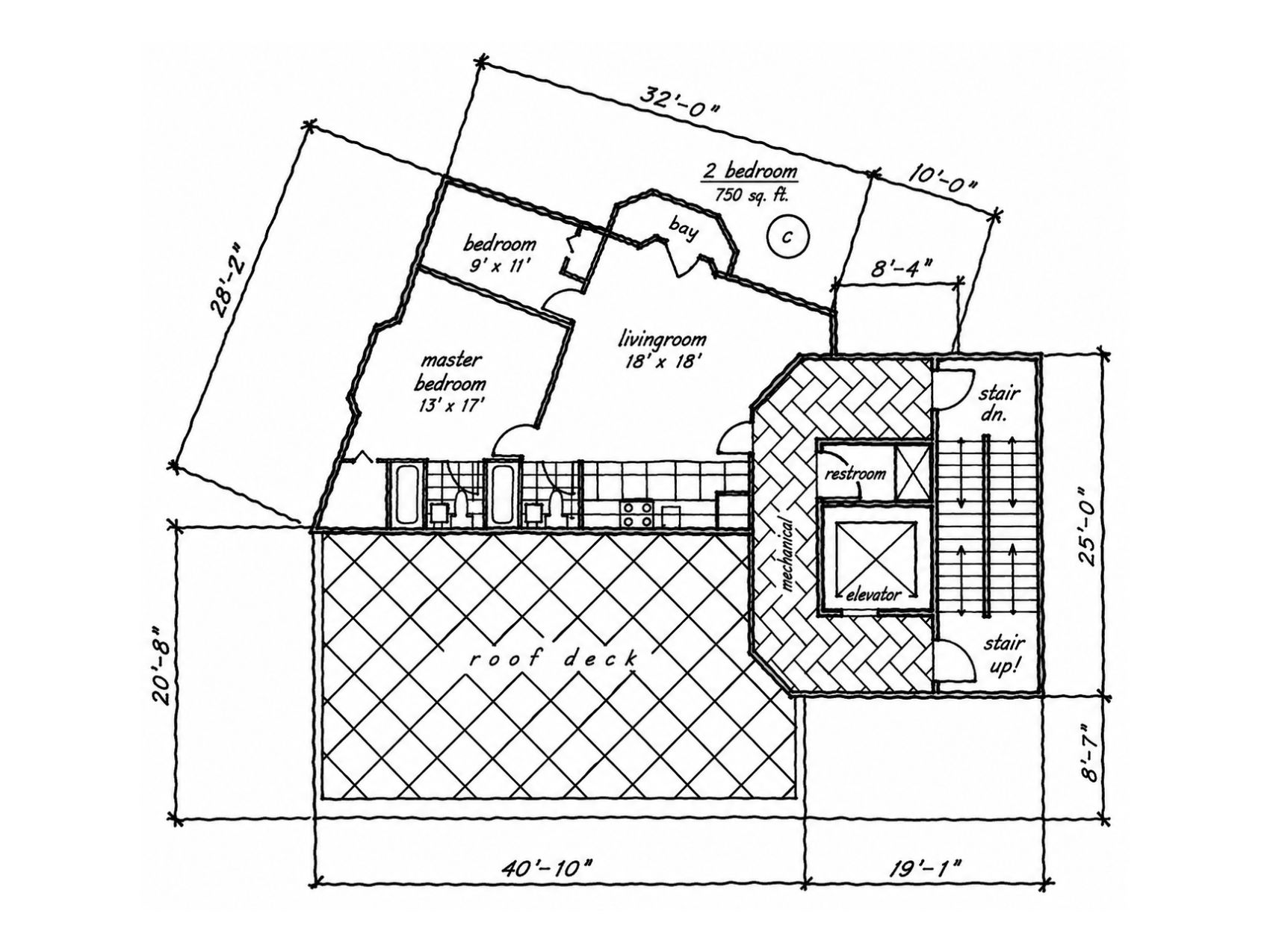

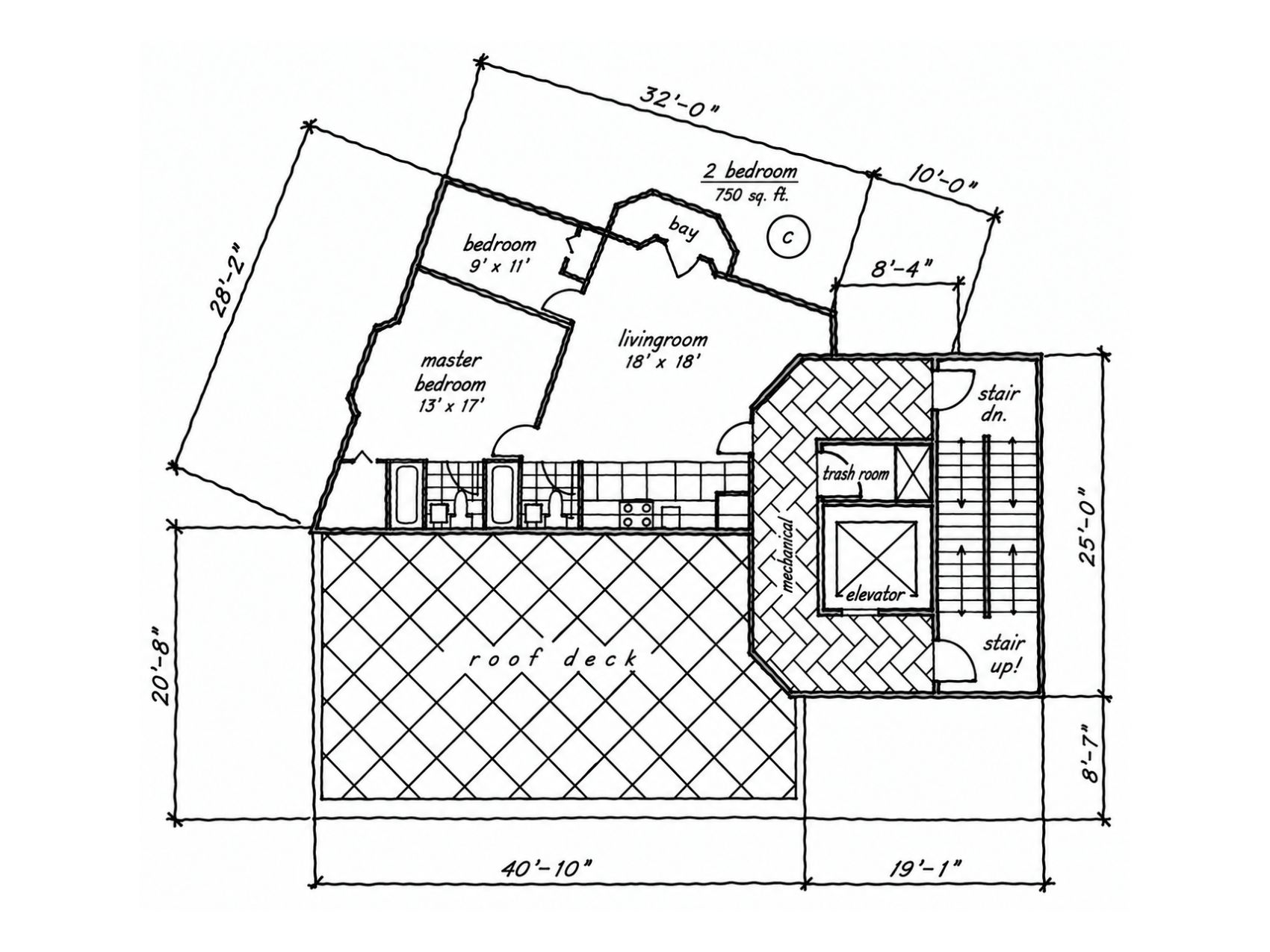

Seventh-floor plan study for the Putnam Avenue project showing a two-bedroom residence, living area, bathrooms, kitchen, roof deck, elevator, stairs, and mechanical core.

Seventh Floor Plan

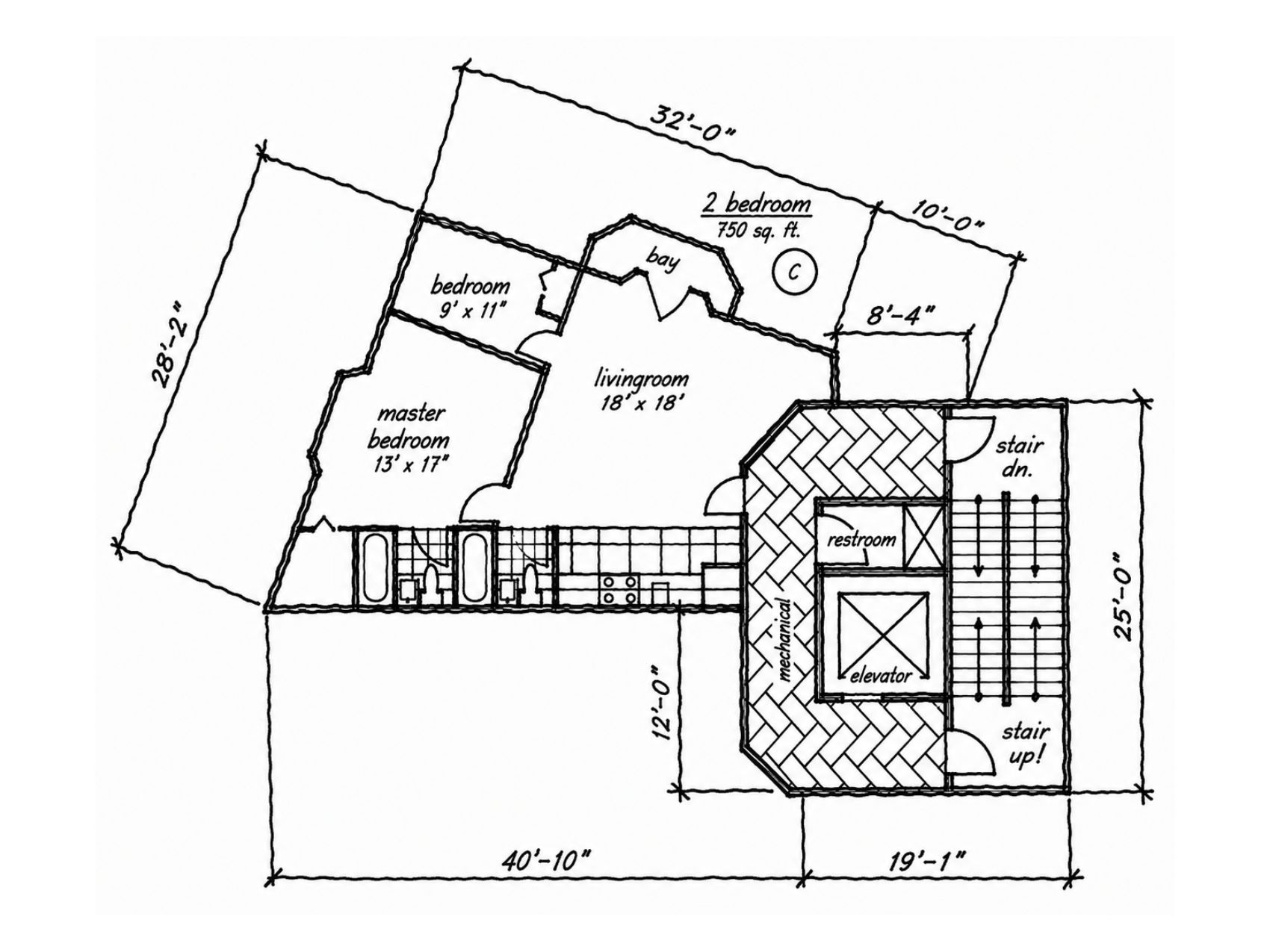

Upper-floor plan study for the Putnam Avenue project showing a two-bedroom residence with living area, bedrooms, bathrooms, kitchen, elevator, stairs, and mechanical core.

Eighth and Ninth Floor Plan

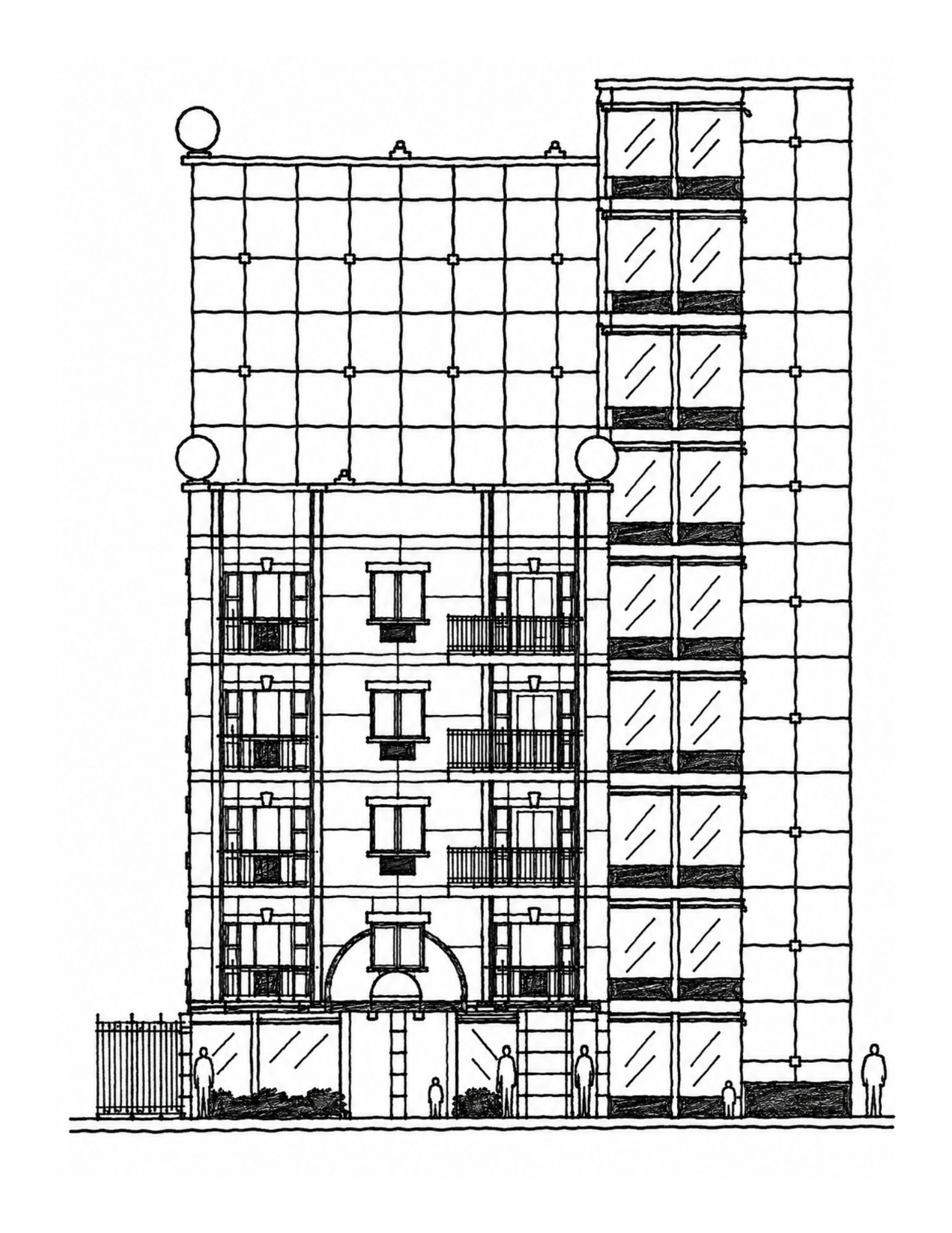

Front elevation drawing of the Putnam Avenue residential building showing the multi-story facade, balconies, windows, entrance, and taller glazed tower element.

Front Elevation

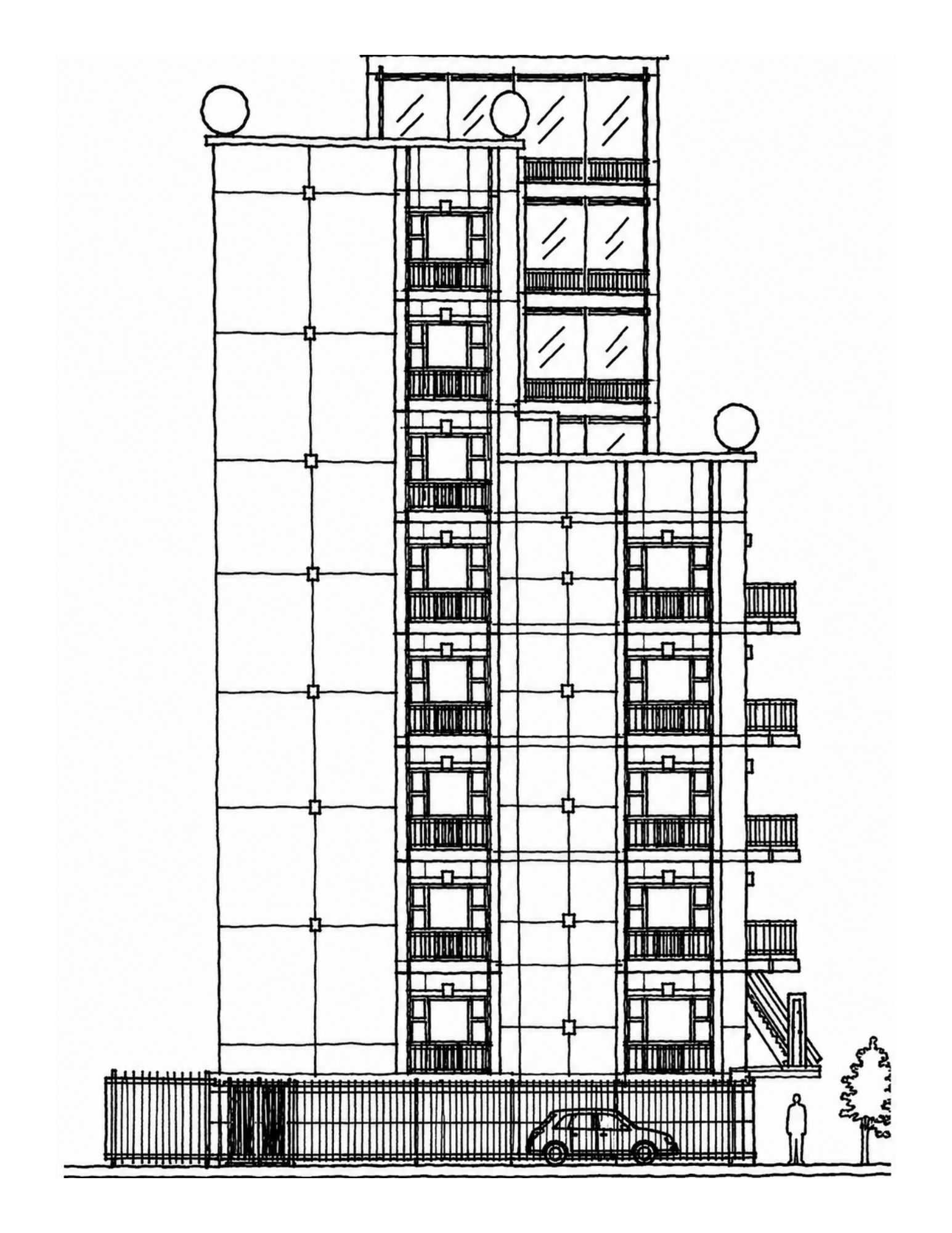

Side elevation drawing of the Putnam Avenue residential building showing the stepped building mass, balconies, windows, rooftop elements, fencing, and street frontage.

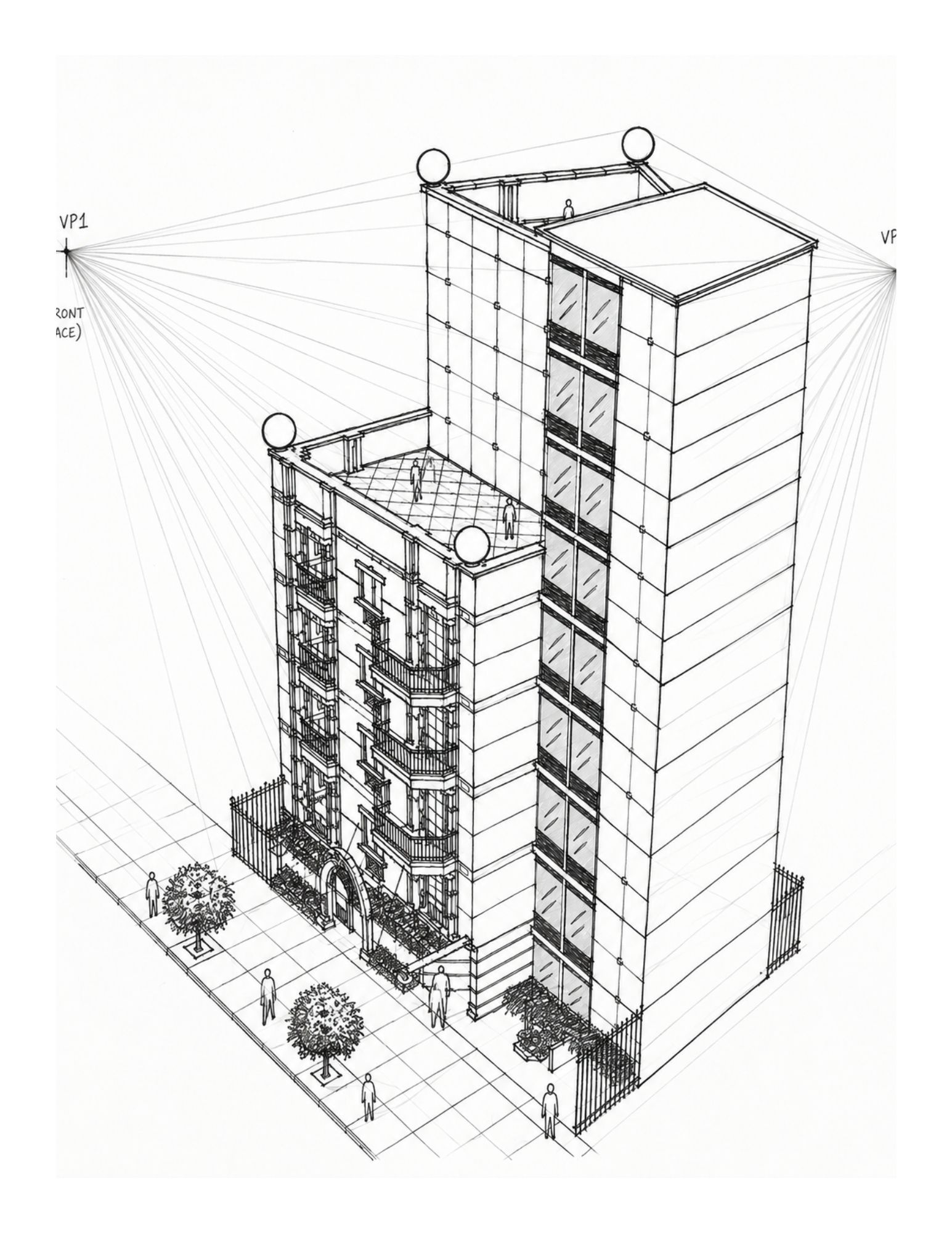

Elevated perspective drawing of the Putnam Avenue residential building showing the front facade, taller glazed tower, rooftop terraces, balconies, fencing, and surrounding sidewalk.

Perspective Study 01

See how it came together

Plan studies, elevations, perspective sketches and rendered views — the full set of drawings behind the building above.
